Uzel "sad-router.botik.ru"
ST "Botik": sistema telekommunikacii Pereslavskogo regiona.
Sostoyanie na 31 dekabrya 1997 g.
Uzel "sad-router.botik.ru"
| . | na 31 dekabrya 1997 g. | Primechanie |
| Processor | AMD 486DX-2/66 | - |
| Materinskaya plata | UMC UC4913 chip set UMC82C491 |
- |
| Pamyat' | 16 MB = 4 x SIMM 4MB (30 pin 70 ns) |
- |
| Zhestkie diski | 170 MB (IBM, IDE) |
- |
| IDE kontroller | IDE, ISA | - |
| Setevoi adapter | NE2000 Realtek 8019 ISA | Liniya Ethernet 10Base-T 10Mbps k pole-router |
| Setevoi adapter | CNet 10EBT/VLB Combo | K segmentu (ul. Polevaya d.4) lokal'noi seti zhilogo mikroraiona No 2 |
| Setevoi adapter | NE2000 ISA Winbond 89C904 |
K segmentu (sad-gimnaziya "Pochemuchka") lokal'noi seti zhilogo mikroraiona No 2 |
| Tri setevyh adapteroa | NE2000 Realtek 8019 ISA | K trem (ul. Trudovaya d.3, Lesnoi per. d3 i d5) segmentam lokal'noi seti zhilogo mikroraiona No 2 |
| Videosistema, klaviatura, FDD |
Otsutstvuyut | Ne trebuyutsya. Vmeshatel'stvo pol'zovatelei ne predusmotreno |
| Garantirovannoe elektropitanie |
Otsutstvuet | Ne trebuetsya, Programmno obespechena ustoichivost' k vnezapnomu otklyucheniya elektropitaniya |

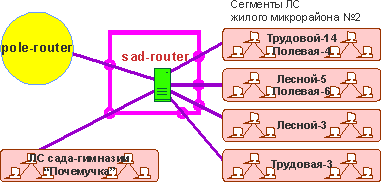

Uzel sad-router raspolozhen v lokal'noi seti zhilogo mikroraiona No 2. Uzel obsluzhivaet:
| Operacionnaya sistema | OS Linux v. 2.0.29 | - |
| Funkcii sad-router | Programnoe obespechenie | Primechaniya |
| Podderzhka ustoichivosti k otklyucheniyu elektropitaniya | Special'noe konfigurirovanie failovoi sistemy, ee re-inicializaciya pri zapuske PK-routera | - |
| IP-marshrutizaciya, fil'traciya paketov |
- | staticheskaya marshrutizaciya |
| Ethernet-bridzhing | yadro OS Linux | protokol IEEE Spanning Tree 802.1d dlya podderzhki izbytochnosti v grafe |
Laboratoriya telekommunikacii
"Botik"
